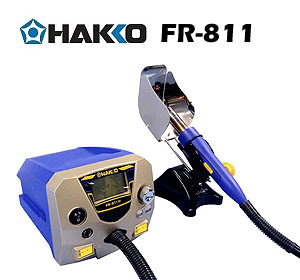

FR-811 |
![](fr-811.files/image002.gif)
|
|
![](fr-811.files/fr-811.jpg) |
特點: |
* 透過LCD螢幕顯示操作狀態 |
* 可用USB讀取數據傳送,隨時監測加熱程式 |
* 使用碳纖發熱燈, 同時提供兩個加熱區域 |
|
|
![](fr-811.files/image003.gif) |
|
|
|
![](../a/fx-838.files/gg.gif) ![](fr-811.files/image004.jpg) ![](fr-811.files/image006.jpg) |
功率消耗 |
1,100W (110V) |
溫度設定 |
50 ~ 600℃ |
控 制 台
功率消耗 |
30W |
風量設定 |
001 ~ 100% (5 ~ 115L/min) |
尺寸 |
160(W) x 145(H) x 110(D)mm |
重量 |
1.5kg |
熱 風 槍
功率消耗 |
1,070W (110V) |
長度 |
250mm |
重量 |
180g |
*熱風流量值只供參考, 實際風量會根據不同噴咀或操作條件所影響。
*長度及重量不包括電線或連接管。 |
|
|
|
![](https://www.hakko.com.cn/image/data/web/product/Drawer-Preheater/FR-811/LCD.jpg)
LCD顯示幕,
參數設定及運作狀態一目了然。
|
![](https://www.hakko.com.cn/image/data/web/product/Drawer-Preheater/FR-811/USB.jpg)
可直接讀取USB記憶裝置進行資料傳送。
|
![](https://www.hakko.com.cn/image/data/web/product/Drawer-Preheater/FR-811/hotair_reflow.jpg)
全新設計BGA噴嘴,
熱風會在內部產生對流,
讓噴嘴內的溫度更平均。
|
![](https://www.hakko.com.cn/image/data/web/product/Drawer-Preheater/FR-811/hotair_pickup.jpg)
真空吸取功能,
只有在焊錫充份熔化後才會吸起元件,
避免對焊盤造成損壞。
|
![](https://www.hakko.com.cn/image/data/web/product/Drawer-Preheater/FR-811/hotair_vacuum.jpg)
真空吸取指示器,
當成功吸起組件後,
指示器也會上升,
清楚顯示作業狀態。
|
![](https://www.hakko.com.cn/image/data/web/product/Drawer-Preheater/FR-811/hotair_handle.jpg)
熱風流量最高可達每分鐘115公升,
溫度可設定在攝氏50~
600℃之間。
|

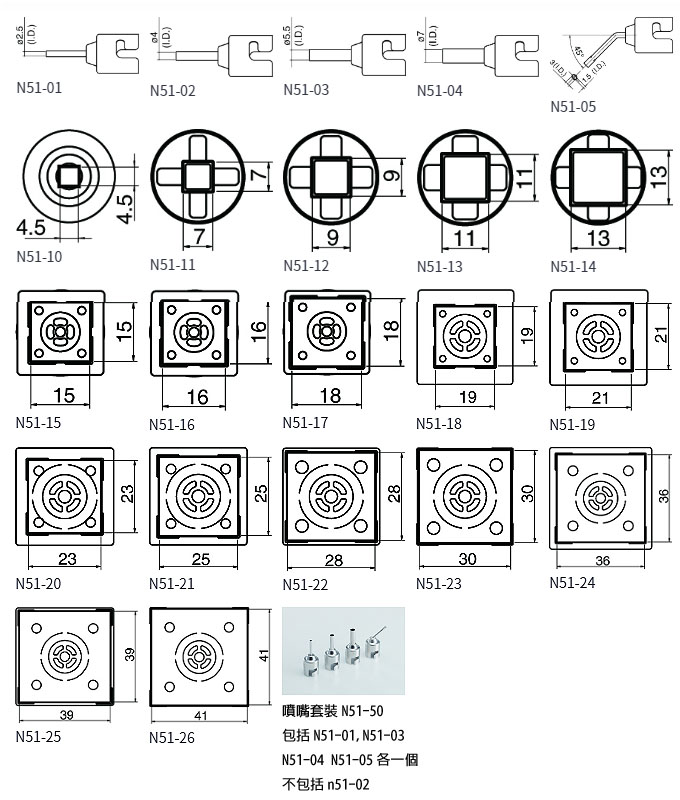

另 購 噴 嘴
![](fr-811.files/0.jpg) |
包 裝 清 單
![](https://www.hakko.com.cn/image/data/web/product/Drawer-Preheater/FR-811/packing.jpg)
控制台連熱風鎗, 熱風鎗架, 真空吸管旋鈕(L)連螺絲, 吸墊(Φ3mm, Φ5mm, Φ7.6mm各2個), USB連接線, 軟體光碟, 電熱偶, 抗熱墊, 電源線, 溫度參考圖表, 使用說明書
使用FR811專用軟體及另選配件來組成一套低成本的SMD返修系統 |
![https://www.hakko.com.cn/image/data/web/product/Drawer-Preheater/FR-811/graph_01.jpg](fr-811.files/image008.jpg)
FR-811提供6段加熱控制區域(包括底部加熱器), 跟大型回焊爐所提供的設定類同。
![https://www.hakko.com.cn/image/data/web/product/Drawer-Preheater/FR-811/link_PC.jpg](fr-811.files/image010.jpg)
可使用USB連接電腦進行溫度即時監測或加熱程式設計。
![https://www.hakko.com.cn/image/data/web/product/Drawer-Preheater/FR-811/graph_02.jpg](fr-811.files/image012.jpg)
連接電腦後使用專用軟體來進行加熱程式設計或溫度即時監察, 加熱程式及圖表能夠以CSV格式保存。
![https://www.hakko.com.cn/image/data/web/product/Drawer-Preheater/FR-811/C5029.jpg](fr-811.files/image014.jpg)
熱風鎗固定架L 可另外加裝專用底板固定架。
![https://www.hakko.com.cn/image/data/web/product/Drawer-Preheater/FR-811/C5028.jpg](fr-811.files/image016.jpg)
熱風鎗固定架M 適用於沒有使用底部加熱器或使用非專用底部加熱器的場合。
![https://www.hakko.com.cn/image/data/web/product/Drawer-Preheater/FR-811/bottom_heater.jpg](fr-811.files/image018.jpg)
專用底部加熱器 使用碳纖發熱燈, 同時提供兩個加熱區域。
![https://www.hakko.com.cn/image/data/web/product/Drawer-Preheater/FR-811/C5027.jpg](fr-811.files/image020.jpg)
專用底部加熱器 使用碳纖發熱燈, 同時提供兩個加熱區域。
![https://www.hakko.com.cn/image/data/web/product/Drawer-Preheater/FR-811/board_clip.jpg](fr-811.files/image022.jpg)
底板夾子B5098適用於固定不規則的底板。 |
![https://www.hakko.com.cn/image/data/web/product/Drawer-Preheater/FR-811/B5098.jpg](fr-811.files/image024.jpg)
|
![https://www.hakko.com.cn/image/data/web/product/Drawer-Preheater/FR-811/board_suport_unit.jpg](fr-811.files/image026.jpg)
底板支撐杆B5136從底部支撐底板,避免底板變形。 |
![https://www.hakko.com.cn/image/data/web/product/Drawer-Preheater/FR-811/B5136.jpg](fr-811.files/image028.jpg)
|

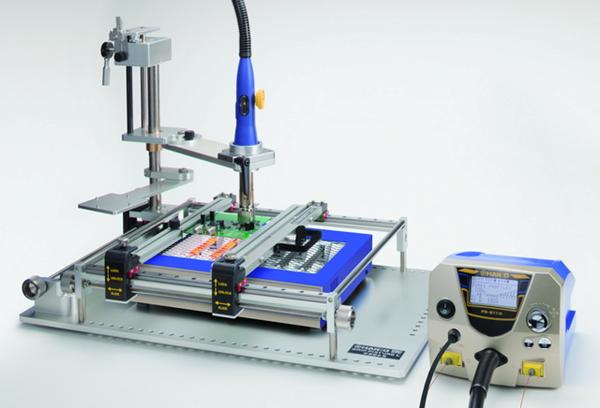

SMD 返 修 系 統 組 合 範 例![https://www.hakko.com.cn/image/data/web/product/Drawer-Preheater/FR-811/setup.jpg](fr-811.files/image030.jpg) |
|
|
|
|
|
|
|
|
|
|
